Why lubricating electrical contacts is essential for equipment reliability

Modern electrical systems are at the heart of countless industrial and consumer applications. Electric vehicles, medical devices, household appliances, automation systems, and industrial robots all rely on reliable electrical connections to operate safely and efficiently.

However, electrical contacts are constantly exposed to vibration, moisture, contamination, and mechanical wear. Over time, these factors can increase electrical resistance, cause signal loss, or even lead to complete system failure.

For this reason, lubricating electrical contacts has become a key practice for improving reliability, safety, and service life. Applying specially formulated lubricating greases helps protect connections against the most common failure mechanisms and ensures stable long-term performance.

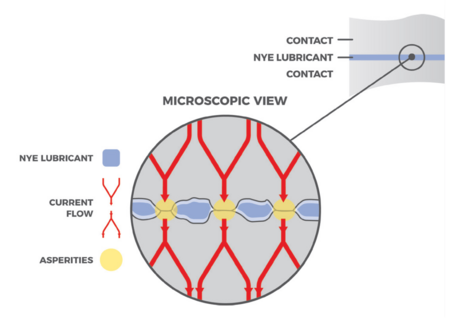

How current flows through a lubricated electrical contact

A common misconception is that a grease used in electrical connectors must be electrically conductive. In reality, electrical contact greases are dielectric materials designed not to interfere with electrical conduction.

Current does not flow through the grease itself. Instead, it flows through the direct contact points between the metal surfaces. At a microscopic level, metal surfaces are not perfectly smooth. They consist of peaks and valleys. The grease fills the valleys, displacing moisture and contaminants, while the peaks remain in direct contact. This allows reliable electrical conduction while protecting the contact area from environmental influences.

What problems can be prevented by lubricating electrical contacts?

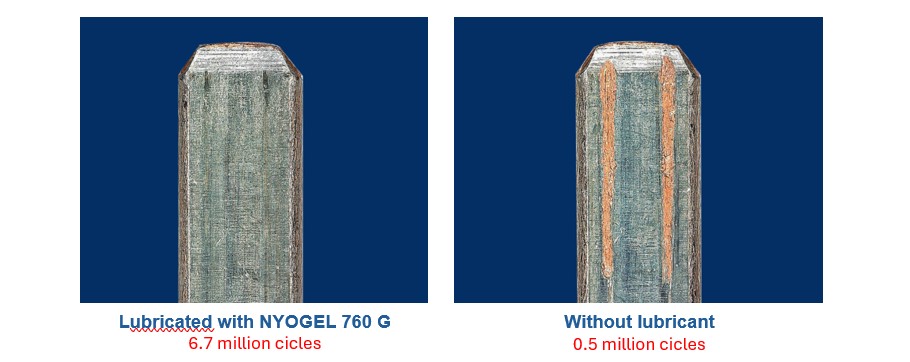

FRETTING CORROSION

Fretting corrosion is one of the most frequent and often overlooked failure mechanisms in electrical connectors.

It occurs when micro-movements between contact surfaces are caused by vibration, thermal expansion, or operating cycles. These movements gradually wear away protective coatings and promote the formation of insulating oxides on the contact surfaces.

The result can be:

Increased electrical resistance.
Signal degradation.
Intermittent failures.
Premature connector failure.

Electrical contact greases reduce friction between surfaces, minimize wear, and help preserve protective metal coatings. As a result, connector service life can be significantly extended while maintaining consistent electrical performance.

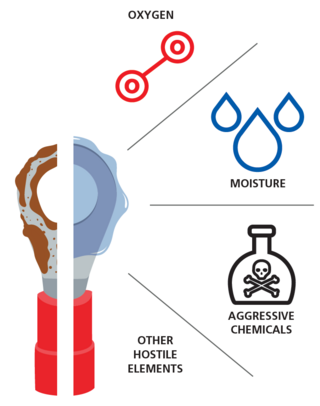

PROTECTION AGAINST MOISTURE

Moisture is one of the main threats to electrical connection reliability. Water ingress can lead to:

Progressive corrosion of terminals and contacts.
Increased electrical resistance.
Signal interruptions.
Short circuits under certain operating conditions.

Electrical contact greases create a hydrophobic barrier that helps repel water and reduce moisture penetration into the contact area. They also help prevent oxidation and protect metal surfaces over time.

PREVENTION OF CONTAMINATION AND CORROSION

Even in sealed systems, dust, dirt, and airborne particles can eventually find their way into connectors.

These contaminants can compromise electrical performance, create abnormal resistance levels, and accelerate corrosion processes.

Lubrication acts as a protective barrier that helps prevent contaminants from reaching the active contact area. This reduces the risk of premature degradation and improves overall system reliability.

REDUCED INSERTION FORCE

Multipin connectors commonly used in automotive, electronic, and industrial applications often require high insertion forces during assembly.

Without lubrication, assembly can cause surface damage, scratches, or misalignment that may later contribute to fretting corrosion.

Applying a thin layer of grease can significantly reduce insertion force, facilitating assembly while helping to preserve the integrity of the contact surfaces from the very beginning.

The role of lubricating greases in electrical contact protection

Protecting electrical contacts requires more than simply creating a barrier against moisture. The selected grease must provide a balanced combination of dielectric properties, chemical stability, oxidation resistance, and wear protection.

Choosing the right grease depends on factors such as:

Operating temperature
Connector materials
Vibration levels
Exposure to moisture or contaminants
Electrical performance requirements

Thanks to its expertise in lubrication solutions, FUCHS develops products that help reduce friction, wear, and the failure mechanisms associated with electrical connections. Combining application know-how, R&D capabilities, and extensive experience in specialty greases enables FUCHS to provide solutions tailored to demanding applications.

Lubricating electrical contacts is a highly effective preventive measure for improving the reliability of electrified systems.

The right grease helps protect against fretting corrosion, moisture, contamination, and assembly-related wear. The result is longer connector life, fewer failures, and greater operational reliability.

As electrification continues to expand across industries such as automotive, industrial automation, and e-mobility, proper electrical contact lubrication has become an essential element in achieving long-term system performance.
